  1. Video Editor Plugins

Final Cut Pro X

Import Gyroflow Projects into Apple's Final Cut Pro.

Last updated 7 months ago

About Gyroflow Toolbox

Gyroflow Toolbox allows you to import Gyroflow Projects directly into Apple's Final Cut Pro. This allows you to take the stablised data from Gyroflow and use it within Final Cut Pro as an effect, so that you don't have to export a ProRes file (for example), from Gyroflow - avoiding any round-tripping, and unnessary render files.

It also allows you to manipulate and keyframe parameters such as FOV, Smoothness, Lens Correction, Horizon Lock/Roll, Position Offset and Rotation directly within Final Cut Pro.

Gyroflow Toolbox is powered by the same Gyroflow Core Engine that the hero Gyroflow application uses, so you get the same awesome performance in Final Cut Pro as you do in the hero Gyroflow application.

You can even use this in conjunction with (also on the App Store), to stabilise Blackmagic RAW files!

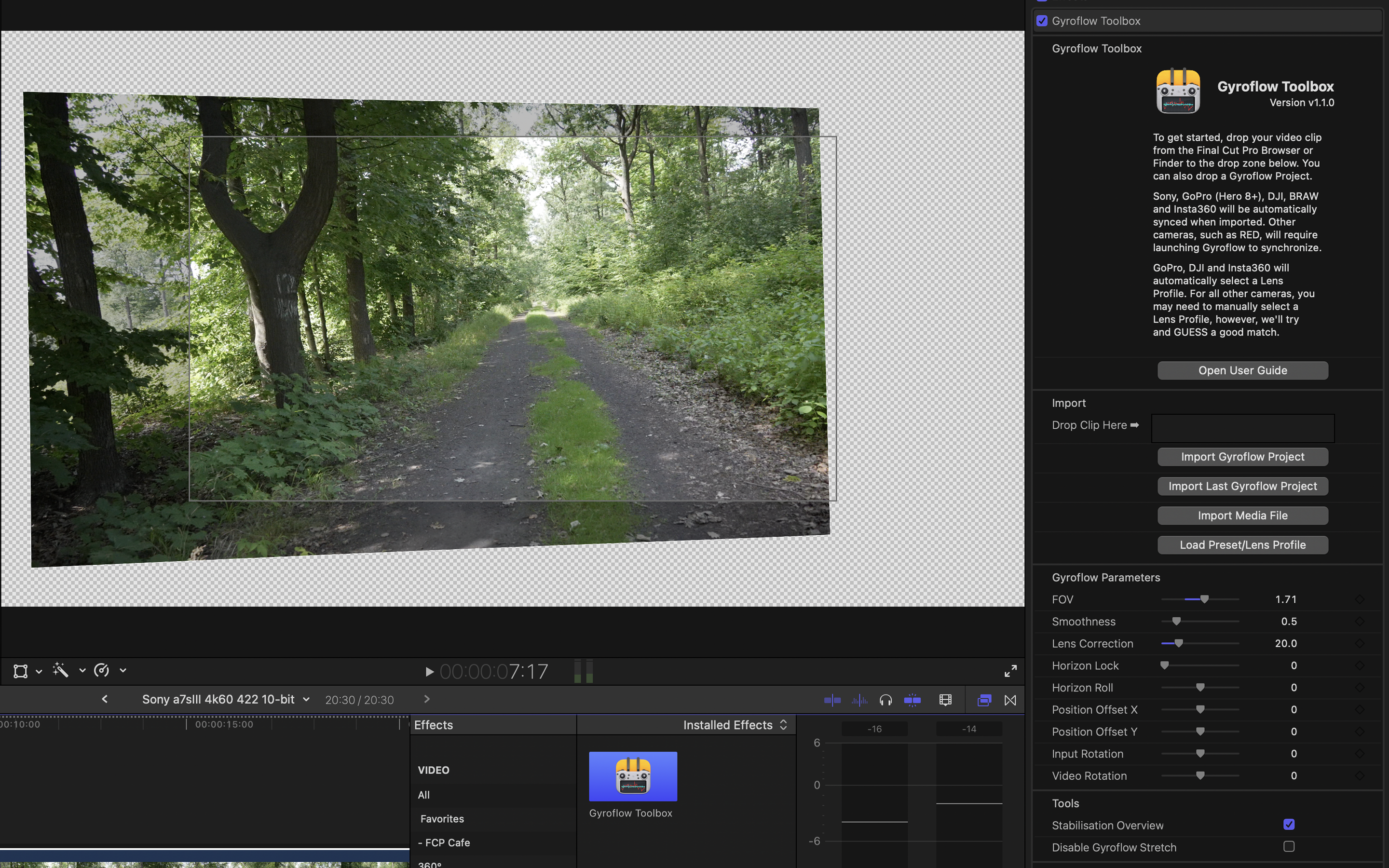

To get started, simply drop your video clip from the Final Cut Pro Browser or Finder to the drop zone in the Final Cut Pro Inspector. You can also drop a Gyroflow Project.

Sony, GoPro (Hero 8+), DJI, Blackmagic RAW and Insta360 will be automatically synced when imported. Other cameras, such as RED, will require launching Gyroflow to synchronise.

GoPro, DJI and Insta360 will automatically select a Lens Profile. For all other cameras, you may need to manually select a Lens Profile, however, we'll try and GUESS a good match.

Download

Gyroflow Toolbox is a one-time payment of USD$9.99.

There is currently no free trial, and it is only be available on the Mac App Store as a one-time payment.

Limitations

You should always put the Gyroflow Toolbox effect on a clip inside a Compound Clip.

Documentation & Support

You can find the official Gyroflow Toolbox website here:

Alternatively, as Gyroflow Toolbox is open source, you can also . You can learn more and purchase on the Mac App Store .

This is because you should only ever apply the Gyroflow Toolbox effect to an entire clip - the clip cannot be trimmed. Due to limitations in Final Cut Pro's FxPlug4 API - we currently can't determine the source start timecode of a clip. Because of this, the Gyroflow Toolbox effect should only be applied to a clip where the start of the clip hasn't been trimmed in the timeline (i.e. the clip you have in the timeline should show the first frame of the source clip). If you need to trim the start of this clip, you can use the full clip within a Compound Clip, then trim the Compound Clip as required. We have been in contact with the Final Cut Pro team about this, and there's currently no other better workaround or solution. Discussed in .

๐ŸŽฌ
build it yourself via GitHub
here
issue 8
https://gyroflowtoolbox.io
BRAW Toolbox
