# DaVinci Resolve (OpenFX) ## Installation The Gyroflow OpenFX Plugin works on Mac, Windows and Linux: {% tabs %} {% tab title="Mac" %} ### Installing the OpenFX plugin 1. Download the latest version from 2. Create the OFX folder: `/Library/OFX/Plugins`. You can do that in Finder or in the Terminal: `sudo mkdir -p /Library/OFX/Plugins ; open /Library/OFX/Plugins`. 3. Run `Gyroflow-ofx-macosx.dmg` 4. Copy `Gyroflow.ofx.bundle` folder to `/Library/OFX/Plugins/` {% hint style="info" %} **IMPORTANT:** Make sure the OFX folder is in the root `/Library` folder, not your user `/Users/YOUR-USER-NAME/Library` folder. {% endhint %}

### Hardware Acceleration Gyroflow OFX plugin supports **Metal** acceleration on Mac. {% endtab %} {% tab title="Windows" %} ### Installing the OpenFX plugin 1. Download the latest version from 2. Extract `Gyroflow-ofx-windows.zip` somewhere 3. Create the OFX folder: `C:\Program Files\Common Files\OFX\Plugins`. 4. Copy `Gyroflow.ofx.bundle` folder to `C:\Program Files\Common Files\OFX\Plugins`

### Hardware Acceleration Gyroflow OFX plugin supports **OpenGL**, **OpenCL** and **CUDA** acceleration on Windows {% endtab %} {% tab title="Linux" %} ### Installing the OpenFX plugin 1. Download the latest version from 2. Create the OFX folder: `/usr/OFX/Plugins`. 1. You can do that in the Terminal: `sudo mkdir -p /usr/OFX/Plugins && sudo chown $USER /usr/OFX/Plugins`. 3. Extract`Gyroflow-ofx-linux.zip` to `/usr/OFX/Plugins`

### Hardware Acceleration Gyroflow OFX plugin supports **OpenGL**, **OpenCL** and **CUDA** acceleration on Linux {% endtab %} {% endtabs %} ## Source Code You can find the source code for this OpenFX plugin on GitHub [here](https://github.com/gyroflow/gyroflow-plugins). ## Nightly Builds Development moves fast and there are new features added very often, check them out by downloading the nightly build: * [Nightly OpenFX Build for Mac](https://nightly.link/gyroflow/gyroflow-plugins/workflows/release/main/Gyroflow-OpenFX-macos.zip) * [Nightly OpenFX Build for Windows](https://nightly.link/gyroflow/gyroflow-plugins/workflows/release/main/Gyroflow-OpenFX-windows.zip) * [Nightly OpenFX Build for Linux](https://nightly.link/gyroflow/gyroflow-plugins/workflows/release/main/Gyroflow-OpenFX-linux.zip) * [Nightly Gyroflow Build](https://gyroflow.xyz/devbuild/?autodownload) The list of all nightly builds is available on [GitHub actions](https://github.com/gyroflow/gyroflow-plugins/actions). ## Supported Hosts This **OpenFX** plugin has been primarily built for Blackmagic's **DaVinci Resolve**, however it has also been tested in **MAGIX Vegas** and **ASSIMILATE Scratch**. It may also work in other OpenFX-compatible hosts, such as **Baselight**, **DVS Clipster**, **Nuke** & **Flame**, however it's currently untested. If you would like to use this OpenFX Plugin in another application, and it's not working correctly, please [post a GitHub issue](https://github.com/gyroflow/gyroflow-plugins/issues). ## Interface This section explains the various sections of the OpenFX Plugin Interface.

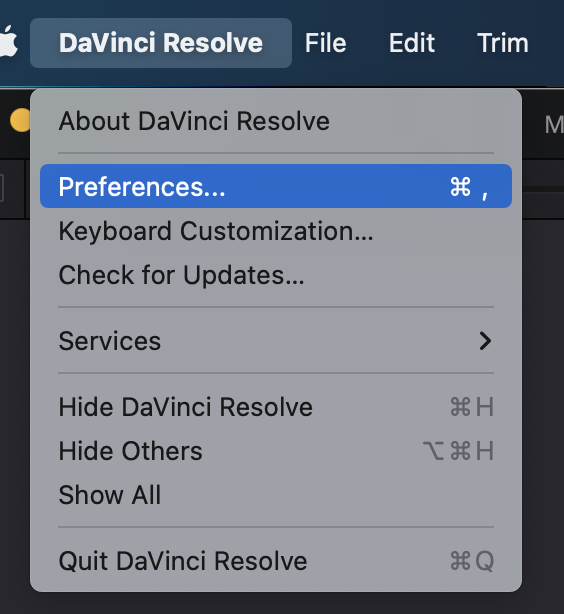

### Gyroflow Project #### Load for current file This feature relies on external scripting and is only available in paid DaVinci Resolve Studio. To use this feature, you also have to allow executing external scripts. You can do this by going to **Preferences...**

Then within the **General** section, make sure **External scripting using** is set to **Local**.

For this feature to work, you must have the clip you want to apply Gyroflow to selected in the **Edit** page or in the **Color** page. It is also impossible to query file path on a **Compound Clip**. In any case, you can just select the video or project file using the **Browse** button, as explained next... #### Browse If you're not able to use the **Load for current file** feature, you can manually **Browse** for a Gyroflow Project. Just click the **Browse** button and navigate to wherever your Gyroflow Project is saved. The OpenFX Plugin will remember the last opened folder.

#### Load preset/lens profile Clicking the **Load preset/lens profile** button allows you to select a **Preset** or **Lens Profile**. Lens calibration is a very important piece of the stabilization algorithm and it's very important to use accurate lens profile when stabilizing a video in Gyroflow. You can learn more [here](https://docs.gyroflow.xyz/app/getting-started/lens-calibration). On macOS, the built-in Lens Profiles are located at: `/Applications/Gyroflow.app/Contents/Resources/camera_presets`

#### Open in Gyroflow If you already have a Gyroflow Project loaded, pressing **Open in Gyroflow** will open this project in Gyroflow. If you don't already have a Gyroflow Project loaded, this will just open Gyroflow in it's default state.

#### Reload Project If you already have a Gyroflow Project loaded, pressing the **Reload Project** button will reload the project from the filesystem. This is useful if you've made changes in the main Gyroflow application, but now want to update the OpenFX Plugin.

#### Last saved project This is a convenince function that allows you to load the last saved project in the main Gyroflow application to the OpenFX plugin. This is useful if you're working on the free version of DaVinci Resolve, and you don't have access to the **Load for current file** feature.

#### Status Message Underneath the **Last save project** button is a checkbox that displays a status message. This is useful to determine if everything is working correctly, or if there's any issues or problems - for example, a frames per second mismatch:

If everything is correct and working, you'll see this:

### Adjust Parameters This section allows you to manually adjust several Gyroflow parameters directly within the OpenFX plugin. You can also apply keyframes.

#### Input & Video Rotation **Input Rotation** is when the Host (i.e. DaVinci Resolve) rotates the input pixels before feeding to the OpenFX Plugin. For example, if an `.mp4` contains rotation in the metadata, the Host will automatically rotate it. Gyroflow expects raw pixels directly from the source file, so if the Host has already rotated them, it won't match. Given this, the **Input rotation** is the rotation done by the host BEFORE feeding to the OpenFX plugin, whereas **Video rotation** is a rotation by the Gyroflow engine AFTER stabilisation. #### Video Speed Use this slider to change video speed or keyframe it, instead of built-in speed changes in the editor. #### Disable Gyroflow's stretch If you used Input stretch in the lens profile in Gyroflow, and you de-stretched the video separately in Resolve, check this to disable Gyroflow's internal stretching. ### Keyframes This section allows you to control how the OpenFX handles keyframes.

#### Use Gyroflow's keyframes Ticking this uses Gyroflow's internal keyframes, instead of the ones in your host application (i.e. DaVinci Resolve). This is enabled by default. #### Recalculate keyframes This button allows you to recalculate keyframes after adjusting the splines (in Fusion mode). ### Additional Settings This section covers the additional settings at the bottom of the OpenFX settings.

#### Stabilization overview This allow you to zoom out the view to see the stabilization results. This is very useful to see if and how Gyroflow is working. You should disable this before rendering. #### Don't draw outside source clip When clip and timeline aspect ratio don't match, draw the final image inside the source clip, instead of drawing outside it. #### Embed .gyroflow data in plugin If you intend to share the host (i.e. DaVinci Resolve) project to someone else, the plugin can embed the Gyroflow project data including gyro data inside the host project. This way you don't have to share `.gyroflow` project files. Enabling this option will make the project bigger. This option is off by default. ## Workflow ### Vertical Video or different aspect ratio For vertical video, or if your timeline has different aspect ratio than your source video, the first thing you have to do is change your timeline settings -> Mismatched resolution to "**Scale entire image to fit**"

Then you have two options: 1. The preferred option is to add the Gyroflow OpenFX plugin in a Fusion node, then set the target resolution in the **Output size** area in the plugin. Then go to plugin Settings and check **Use plugin RoD for output size** and then you can continue on the vertical timeline in the edit/color pages. For this to work correctly, you have to change **Clip attributes -> Image Orientation** to **0°**, and then in plugin set **Video rotation** to **90** or **-90** and **Input rotation** to **0°.** 2. Alternatively, change your timeline scaling settings to **Scale image to fit** instead of **Scale image with crop** - this is easier method but if you have 16:9 video that you want to export as 9:16, it will negatively affect the quality. ### Frame Rate Mismatch If your timeline has different frame rate than the source file, you may experience broken stabilization. The plugin tries its best to adapt to the frame rate differences, but sometimes it's not possible and in that case, you have to add the plugin as a Fusion node instead.
